Anchoring systems

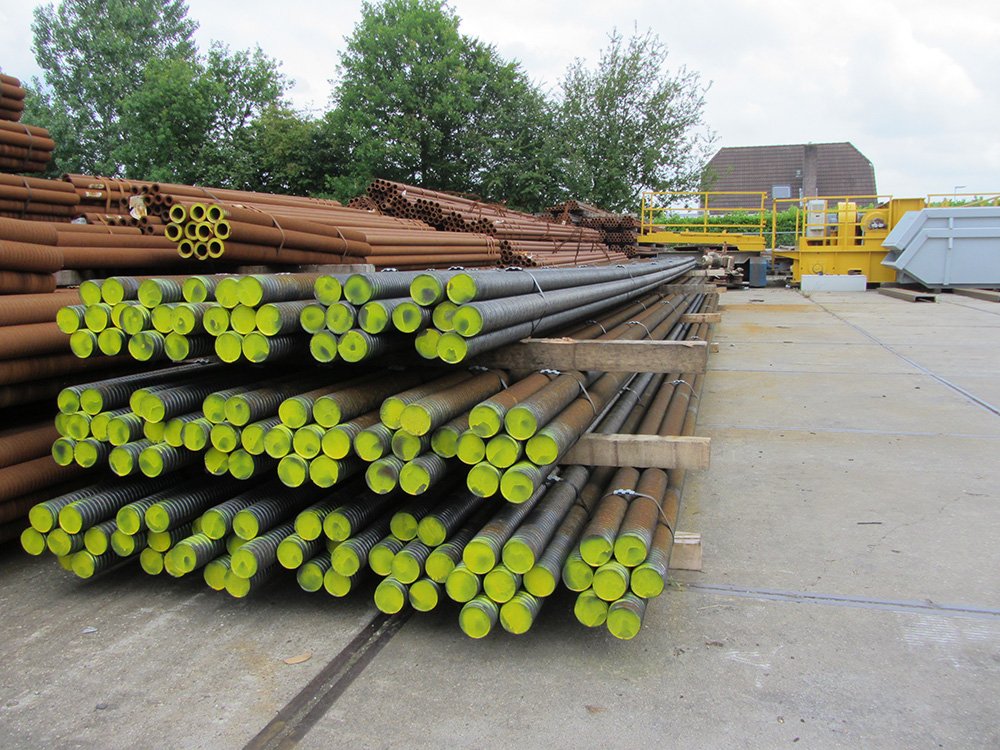

Solid threaded bars from Ø 30 mm up to Ø 100 mm are used as solid core tensile and compression anchors. Available in steel grades S355, S530 and S600,. Meever Middle East can also supply with double corrosion protection.

Tie-bars
Meever Middle East offers both tie-bars, upset and with a turned thread as well as cold threaded tie-bars. Couplings, turn-buckles, nuts, plates and whaling’s (HE or double U) are all available.

Micro piles/screw injection piles:
Meever Middle East offers a full range of micropiles complete with drill bits, couplings and plates. For a quotation or information please contact us: sales@meever.ae

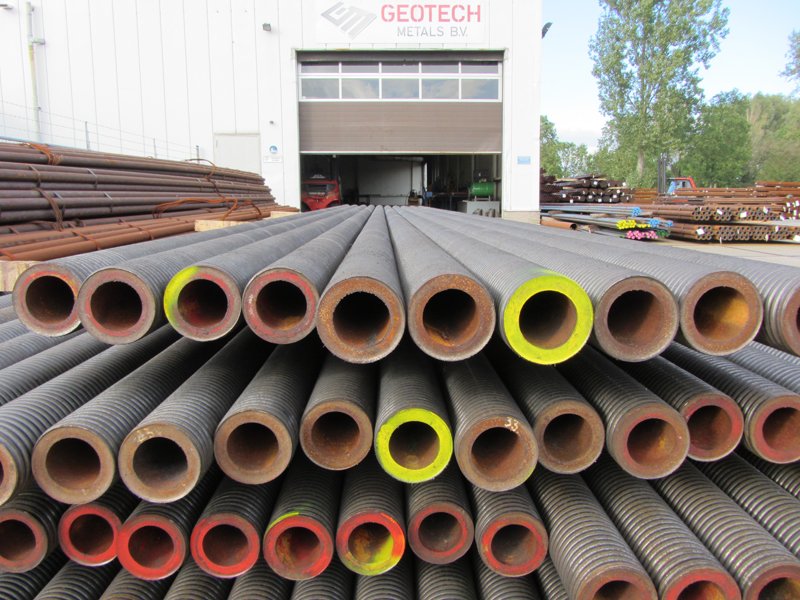

Hollow bar systems
Our hollow bar systems are fully threaded and produced of high strength structural steel. Because of their composition and controlled fabrication, these steels have high yield strength, good impact strength and excellent weldability. The systems are

self drilling, very suitable for drilling with percussion and also for high torque drilling without percussion and fast to install. Our systems are made of hot rolled thick walled tubes in the steel grade S460NH and, our special steel, GM600. Both steel grades are produced according EN 10210-1 “Hot finished structural hollow sections of non alloy and fi ne grain steels” and have, thanks to their cleanliness and fine grain size, excellent capacity to the short time simultaneously dynamic loads (torque, frequent percussion impact, bending moments) during drilling as long term load and durability. When using a suitable drillhead in combination with sufficient drilling capacity these systems can be installed in every soil condition without serious problems.

Both anchoring systems fulfill the requirement of design according to the European standards:

  • EN 1537 Execution of special geotechnical works (Ground Anchors)

  • EN 14199 Execution of special geotechnical works (Micropiles)

  • EN 14490 Execution of special geotechnical works (Soil nailing)

The systems are suitable for both temporary and permanent applications. Corrosion protection can be realized by:

  • Sacrificial corrosion (design principal)
  • Galvanizing according to EN-ISO 1461
  • Duplex coating according to EN 15773

We off er a full scale stock of components as:

  • Couplings (with middle stop and controlled energy transmission)
  • Nuts (fl at or conical)
  • Drill bits (diff erent diameters and design, hardened and versions with carbide inserts)

  • Plates (standard and special designs)

Our large stock gives our clients the possibility to act fast. In consultation different sections, unit length and drill bits can be produced.

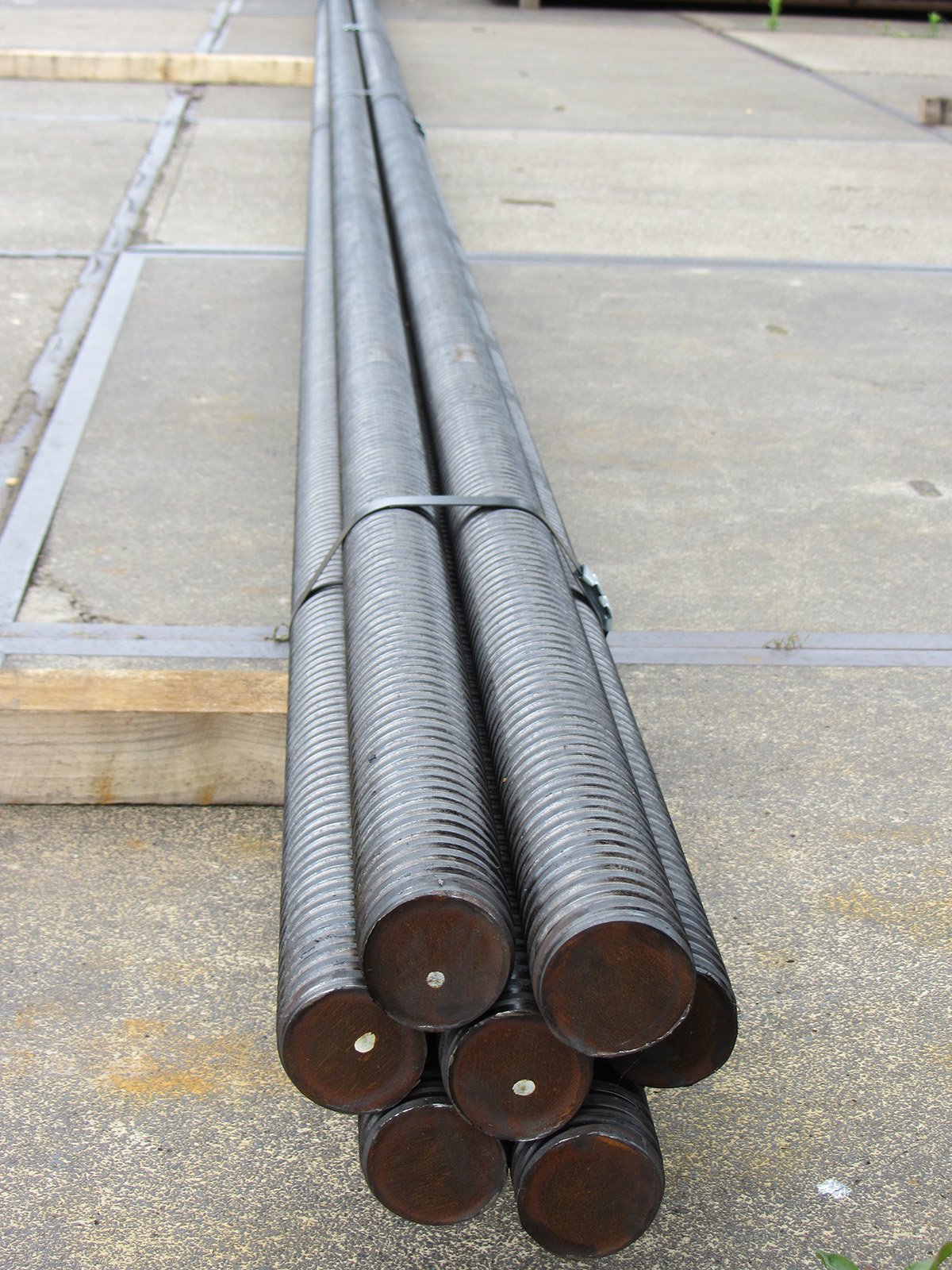

Bar systems
Our bar systems are fully threaded and produced of high strength structural steel. Because of their composition and controlled fabrication, these steels have high yield strength, good impact strength and excellent weldability. The systems are made of hot rolled massive bars in the steel grade S355, S530 and S600.

All anchoring system fulfills the requirements of design following the European Standards:

  • EN 1537 Execution of special geotechnical works (Ground Anchors)
  • EN 14199 Execution of special geotechnical works (Micropiles)
  • EN 14490 Execution of special geotechnical works (Soil nailing)

The systems are suitable for both temporary and permanent applications. Corrosion protection can be realized by:

  • Sacrificial corrosion (design principal)
  • Double corrosion protection (sheeting in combination with grout cover)

We off er components as:

  • Couplings + Nuts (flat or conical)
  • Spacers + Plates (standard and special designs)

In consultation different sections can be produced.
Our systems can be used for the following applications:

Civil engineering:

  • Reinforcement of excavation pits, retaining walls
    (sheet piles, combi-walls, qua walls, etc.)
  • Micro piles

Pile foundations:

  • Foundations of pylons, masts and wind mills
  • Injection works

Underground mining and tunneling:

  • Stabilization of portals, trenches
  • Rock bolting
  • Injection works
for more information download our app or contact us
